Electric Toothbrush Waterproof Engineering: IPX7 Sealing & Ultrasonic Welding OEM Guide (2026)

In high-vibration personal care appliances, moisture ingress is the single greatest cause of catastrophic field failures and warranty returns. For private label brand owners, sourcing managers, and oral care distributors, an electric toothbrush's waterproof reliability is not merely a marketing claim—it is a critical engineering safeguard that protects the internal printed circuit board (PCB), lithium-ion battery cell, and high-frequency magnetic levitation motor from caustic toothpaste slurry, tap water minerals, and hot shower steam.

While consumer marketing frequently touts "IPX7 waterproof" ratings, factory-level teardowns reveal substantial differences in how waterproofing is achieved. At Dongguan Shijue Industrial Co., Ltd. (OQPO), our engineering lab subjects every production batch to rigorous pneumatic pressure-decay testing and simulated 1-meter immersion protocols. This guide breaks down the structural engineering, material science, and ultrasonic manufacturing techniques required to deliver uncompromised IPX7 waterproof integrity across 500-unit to 100,000-unit OEM production runs.

The 3 Critical Water Ingress Points in Sonic Toothbrushes

A typical sonic electric toothbrush handle consists of three distinct mechanical interfaces, each presenting unique hermetic sealing challenges:

1. The Dynamic Motor Output Shaft Interface: The most technically challenging seal in oral care engineering. The drive shaft must oscillate at 31,000 to 48,000 vibrations per minute (VPM) with an angular amplitude of 8° to 12° while preventing micro-droplets from migrating into the drive cavity.
2. The Ultrasonic Enclosure Housing Joint: The longitudinal or circumferential seam where the upper chassis mates with the handle housing or bottom battery cap.

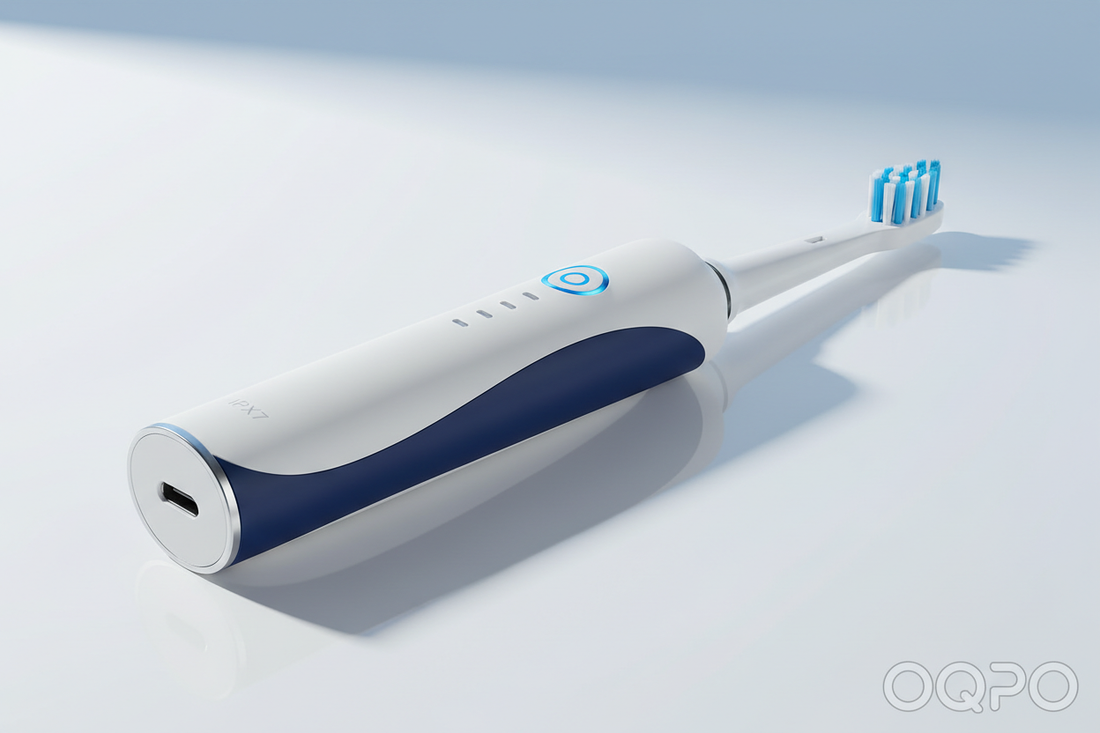

3. The Charging Port or Base Interface: Whether utilizing exposed USB-C silicone covers or inductive wireless charging coils, the base assembly must resist standing water in damp bathroom cups and charging docks.

Dynamic Shaft Sealing: Dual-Lip Fluorosilicone vs. Standard EPDM

In low-tier contract manufacturing, suppliers often install inexpensive EPDM rubber grommets around the oscillating output shaft. Under continuous high-frequency harmonic friction, standard rubber experiences rapid micro-abrasion, thermal hardening, and elastic fatigue within 3 to 6 months of daily use. Once elasticity degrades, microscopic water pathways open, leading to motor bearing corrosion and shorted PCB components.

OQPO addresses this engineering challenge through a proprietary dual-lip fluorosilicone dynamic gasket system:

• Fluorosilicone Material Stability: High-tear-strength medical-grade fluorosilicone elastomer retains elasticity across temperatures from -20°C to +150°C and resists chemical degradation from essential oils, menthol, and surfactants present in commercial toothpastes.
• Hydrodynamic Labyrinth Micro-Geometry: The primary external lip sheds external liquid droplets during oscillation, while the internal secondary lip maintains an airtight boundary against vapor intrusion.
• Torque Preservation Calibration: Gasket shore hardness is calibrated to 45–50 Shore A. This provides sufficient radial pressure to satisfy IEC 60529 IPX7 standards without parasitic friction damping that would rob the sonic motor of operational torque.

Ultrasonic Welding vs. Mechanical Snap-Fit Enclosures

In enclosure manufacturing, brand owners must choose between mechanical snap-fits with perimeter O-rings or permanent ultrasonic hermetic welding:

Engineering Parameter	Mechanical Snap-Fit + O-Ring	OQPO Ultrasonic Shear Joint Welding
Hermetic Seal Integrity	Moderate (relies on continuous elastic compression)	100% Molecular Fusion (Zero mechanical gap)
Drop Test Shock Resistance	High failure risk (clips fracture on 1.2m ceramic drop)	Surpasses 1.5m multi-angle drop on concrete
Thermal Shock Tolerance (Hot Shower Steam)	Thermal expansion differential causes vapor bypass	Unified material density prevents thermal creep
Disassembly / Serviceability	Reworkable in factory	Permanent seal (requires destructive disassembly)
Field Return Rate (Liquid Damage)	2.4% – 4.8% over 18-month lifecycle	< 0.15% across mass production batches

For high-reliability oral care appliances, OQPO standardizes on 20 kHz / 35 kHz high-precision ultrasonic shear joints. By molding precision energy directors along the ABS/PC chassis rim, ultrasonic vibrations generate localized frictional heat that melts and co-mingles polymer chains within 0.35 seconds. Integrated internal flash traps capture excess molten resin, ensuring an aesthetically flawless exterior without parting line flash or plastic burrs.

Factory Quality Control: 100% In-Line Vacuum Testing Protocol

Sampling 1 out of 500 units for water tank submersion is insufficient for brand protection. A single microscopic pinhole or molding void will ruin customer brand perception on Amazon or retail shelves. At our Dongguan facility, our quality control architecture employs a multi-tiered inspection protocol:

1. 100% Pneumatic Vacuum Decay Testing (In-Line): Before final packaging, every assembled toothbrush handle is placed into a customized airtight fixture. The testing unit applies a negative vacuum pressure of -25 kPa for 15 seconds. High-resolution digital pressure transducers measure pressure decay; any drop exceeding 0.05 kPa immediately triggers automated line rejection.
2. IEC 60529 IPX7 Full Submersion Audit (AQL 0.4): Random production samples are submerged under 1.0 meter of water for 30 minutes while actively vibrating across multiple brushing modes. Following removal, handles are dried, opened under cleanroom dissection microscopes, and inspected for internal moisture or condensation.
3. Thermal Cycling & Steam Penetration Chamber: Test units undergo 50 thermal cycles, alternating between hot water baths (65°C ± 2°C) and cold water baths (10°C ± 2°C) with immediate transfer to evaluate differential thermal contraction around the motor shaft gasket.

OEM/ODM Customization & Engineering Collaboration

Whether your brand requires custom housing colors, ergonomic soft-touch liquid silicone rubber (LSR) overmolding, or fully proprietary housing tooling, OQPO provides end-to-end engineering validation:

• Minimum Order Quantity (MOQ): Flexible 500-unit initial production runs for verified private label projects and corporate oral care programs.
• Tooling Precision: In-house CNC and EDM mold fabrication with tolerances held to ±0.02mm, ensuring consistent ultrasonic energy director contact.
• Custom Sampling: Customer-paid functional prototypes delivered in 7–10 business days, complete with IPX7 vacuum decay and motor performance test documentation.
