Water Flosser Hydraulics Engineering: Micro-Piston Pumps, Pressure Stability & OEM Sourcing Guide (2026)

1. The Root Cause of Water Flosser Failure in Retail & FBA Channels

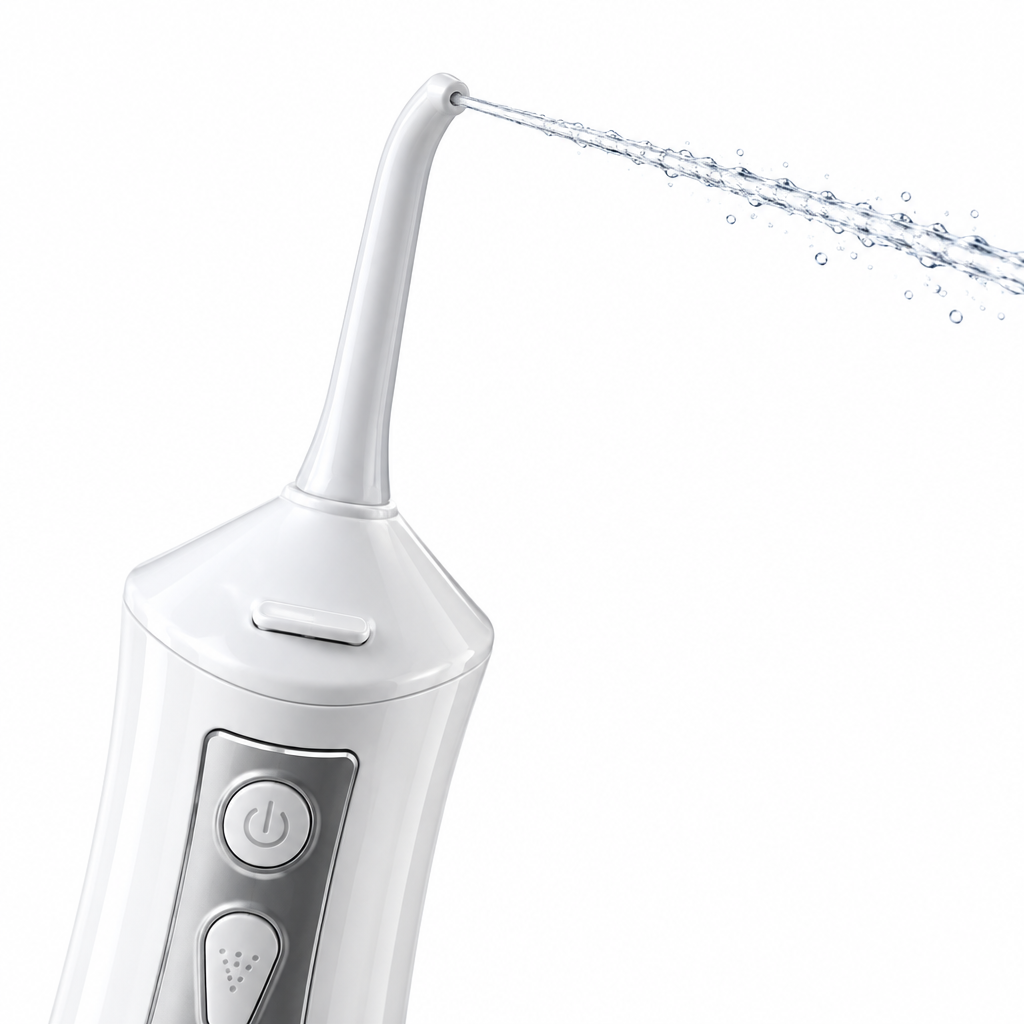

Unlike electric toothbrushes which isolate their mechanical motion inside a dry handle, an oral irrigator operates under continuous hydrostatic pressure. The internal pump chamber must draw water from a 200ml–350ml reservoir, pressurize it up to 130 PSI, and deliver it through a 0.6mm nozzle orifice at 1,200 to 1,800 micro-pulses per minute.

When budget manufacturers cut costs by utilizing sub-standard materials, three catastrophic failure points inevitably emerge within 30 to 90 days:

• Piston Ring & Valve Deformation: Low-cost industrial rubber seals swell, harden, or tear under continuous friction and chlorine exposure, causing pressure to decay from 120 PSI down to an ineffective trickle.
• Internal Fluid Ingress: Weak ultrasonic weld joints or non-isolated pump enclosures allow micro-droplets to seep onto the main PCB and 18650 lithium battery pack, triggering short circuits and terminal device death.
• Inconsistent Cavitation & Air Trapping: Poorly designed fluid intake lines lose prime when the user tilts the flosser, creating loud dry-run motor whining and dry-friction overheating.

2. Micro-Piston Pumps vs. Diaphragm Pumps: Engineering Breakdown

In oral care manufacturing, hydraulic drive mechanisms fall into two primary categories: reciprocating micro-piston pumps and flexible diaphragm pumps.

Diaphragm pumps rely on an elastic elastomer membrane that flexes back and forth to displace water. While inexpensive and quiet at low pressures, diaphragm materials suffer severe cyclic fatigue. They struggle to sustain dynamic working pressures above 80 PSI, making them incapable of delivering the deep subgingival cleaning required by dental professionals.

OQPO exclusively engineers Positive-Displacement Micro-Piston Pumps across all OEM/ODM platforms. Powered by a high-torque DC motor with a precision eccentric cam gear, a hardened stainless steel connecting rod drives a dedicated piston inside a micro-cylinder. This rigid displacement generates sharp, crisp water pulses with immediate pressure response and zero membrane fatigue.

3. Comprehensive Engineering Benchmark: Piston vs. Diaphragm

4. Food-Grade POM Metallurgy & 360° Gravity Ball Intake

The material selection of the pump chamber directly dictates both chemical biocompatibility and dimensional stability under repetitive hydraulic shock.

OQPO molds all pump cylinders and valve housings from medical-grade Polyoxymethylene (POM). POM offers exceptional tensile modulus, low friction coefficient, and outstanding resistance to mineral scaling and hot water degradation. The internal piston rod is forged from SUS304 stainless steel to prevent galvanic corrosion when in contact with tap water minerals.

To solve the universal consumer complaint of flossers stopping mid-clean when tilted toward the lower jaw, our reservoir incorporates a 360° omnidirectional gravity ball suction system. A medical-grade flexible silicone tube is weighted at the tip by a CNC-machined stainless steel sphere, automatically tracking the water level whether the handle is held upright, horizontally, or inverted.

5. Dual-Chamber IPX7 Isolation & Ultrasonic Hermetic Sealing

The most critical architectural requirement in handheld flosser engineering is absolute physical isolation between the hydraulic fluid path and the high-density electronics.

Our Dongguan factory builds every unit with a patented double-walled internal skeleton:

• The Wet Chamber: Houses the POM pump assembly, dynamic intake line, and one-way check valves, completely sealed with dual fluoro-silicone O-rings.
• The Dry Chamber: Houses the 1400mAh–2500mAh lithium-ion battery, USB-C fast charging port, and intelligent microcontroller unit (MCU).
• Drainage Weep Holes: Any condensation or micro-moisture within the reservoir docking channel is routed out through isolated gravity escape grooves, guaranteeing that zero moisture can migrate toward electrical contacts.

6. B2B Quality Control: 5 Mandatory Hydraulic Lab Protocols

Before signing off on pre-shipment inspection (PSI) or approving OEM mass tooling, mandate that your manufacturing partner provides certified QC test logs for:

1. Digital Pressure Transducer Mapping: Verifies dynamic water pressure across all user modes (Soft: 30–50 PSI, Normal: 60–90 PSI, Pulse: 70–110 PSI, Strong: 110–130 PSI) with ±5% accuracy.
2. 10,000-Cycle High-Pressure Hydraulic Endurance: Simulating 2.5 years of heavy flossing without pump head micro-cracking or piston stall.
3. Dry-Run Thermal Cut-Off Protection: The MCU firmware must automatically shut off motor power if the flosser runs dry for 120 seconds, preventing thermal deformation of the POM cylinder.
4. Full Submersion IPX7 Thermal Shock: Handles are immersed 1 meter deep in 50°C water for 30 minutes, immediately followed by 10°C chilled water for 30 minutes, followed by 1,500V dielectric insulation breakdown testing.
5. Nozzle Jet Diameter & Stream Cohesion: Optical comparator measurement ensuring the nozzle tip orifice measures precisely 0.60mm ±0.02mm to maintain focused laminar stream integrity without painful misting or splashing.
